Quantum2 ID Card Printer
The Quantum2 ID card printer is designed for high-volume card production, making it perfect for print bureaus and organizations handling large batch jobs. It excels at mass card personalization, offering vibrant full-colour printing and precise black text overlay on pre-printed cards.
Print Bureau & Large Volume Printing
The Quantum2 ID card printer is designed for high-volume card production, making it perfect for print bureaus and organizations handling large batch jobs. It excels at mass card personalization, offering vibrant full-colour printing and precise black text overlay on pre-printed cards.
Warranty
Backed by Evolis’ unwavering dedication to reliability, Quantum2 card printers deliver exceptional quality and come with a comprehensive 1-year warranty.
Technical specifications
| Direct-to-card dye-sublimation/Resin thermal transfer |
| Edge-to-edge printing, single or dual-sided |
| 300 dpi print head |
| Interfaces: USB, Ethernet |
| Interchangeable input and output hoppers, capacity of 500 cards each |
| Printing performances Single side: 144 cards/hour Dual side: 115 cards/hour |
| Reversible Mag encoding module |
| 1-year warranty |
| Delivered with cardPresso XXS for designing and editing badges |
Standard Printer & Additional Packs
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| QTM306GRH-BS000-MB1 | Quantum 2 Bundle including: 1 x QTM306GRH-BS – Quantum 2 Standard Mag Iso, Smart contact station, Contactless ready 1 x QTM3-KT001 – Production Pack – for Standard version 1 x QTM3-KT002 – Backup Pack – for Standard version |
| QTM306GRH-BS | Quantum 2 Standard Mag Iso, Smart contact station, Contactless ready |
| QTM3-KT001 | Quantum Production Pack – for Standard version aiming at improving Quantum 2 user operation and reduce downtime including: 1 x Detachable card hopper (short door)- Capacity 500 cards @ 30mil/ 0,76mm 1 x Set of 2 cleaning rollers 1 x Extended cleaning kit (50 cleaning cards + 25 cleaning swabs + 1 box of 60 cleaning wipes) |
| QTM3-KT002 | Quantum Backup Pack – for Standard version aiming at providing the end-user with critical components replacement kit to avoid production down time or stoppage including: 1 x Quantum printing head kit1 x Quantum Up/Down encoding module (reversible module) 1 x Detachable card hopper (short door) – Capacity 500 cards @ 30mil/ 0,76mm |
Secured Printer
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| QTM306GRH-BS00K | Quantum 2 Secured (with a centralized locking system) Mag Iso, Smart contact station, Contactless ready |
Options
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| Factory mounted, to be ordered together with the printer | |
| QTM2-OPHS | Springcard Crazy Writer HSP encoding module |
| QTM2-OPG | Evolis Elyctis Smart contact chip encoding module |
| QTM2-OPHLB | Evolis-Elyctis Dual chip encoding module |
| QTM2-OPOMN | Omnikey 5122 encoding module |
| Field Upgradable | |
| QTM2-KTHS | Springcard Crazy Writer HSP encoding kit |
| S10175 | SAM extension board kit for SpringCard Crazy Writer HSP Incl. 3 SAM slots board for SpringCard Crazy Writer HSP, screws and spacers |
| QTM2-KTG | Evolis Elyctis Smart contact chip encoding module |
| QTM2-KTHLB | Evolis-Elyctis Dual chip encoding module |
| S10176 | SAM extension board kit for Evolis Elyctis Dual Incl. 2 SAM slots board for Evolis Elyctis Dual, screws and spacers |
| QTM2-KTOMN | Omnikey 5122 encoding kit |
How to install ribbon into Quantum2?
How to clean Quantum2 cleaning rollers?
Quantum2 - How to clean the interior card transportation system?
How to clean Quantum2 print head?
How to thoroughly clean Quantum2?
Quantum2 - How to rotate the encoding module?
Quantum2 - How to print a tech card?
Quantum2 - How to use the reject box?
Quantum2 - How to lock the printer?

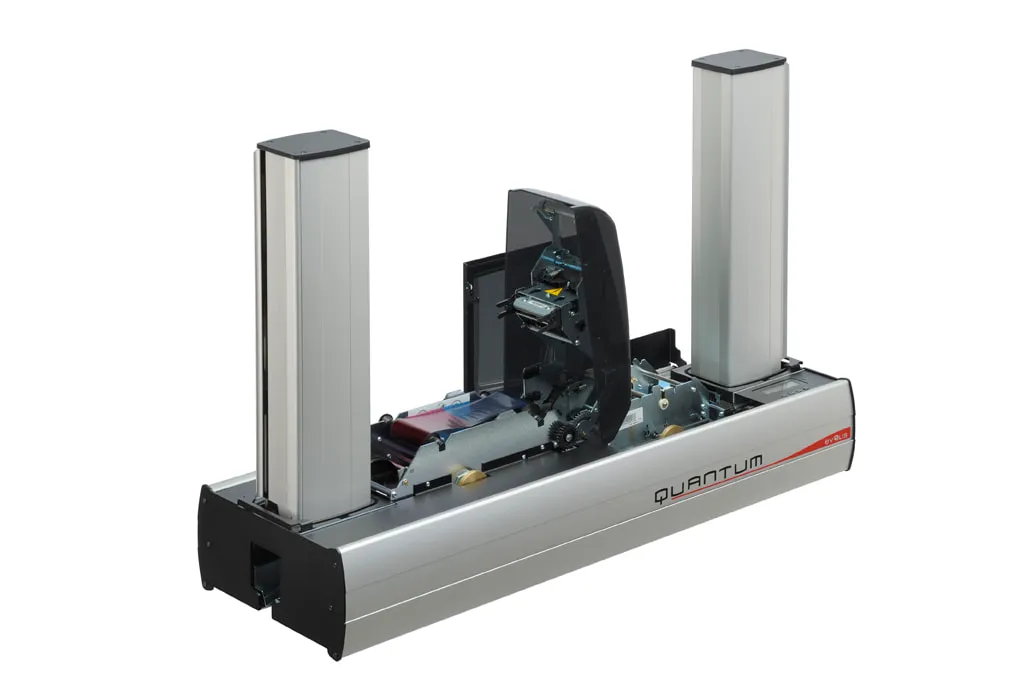

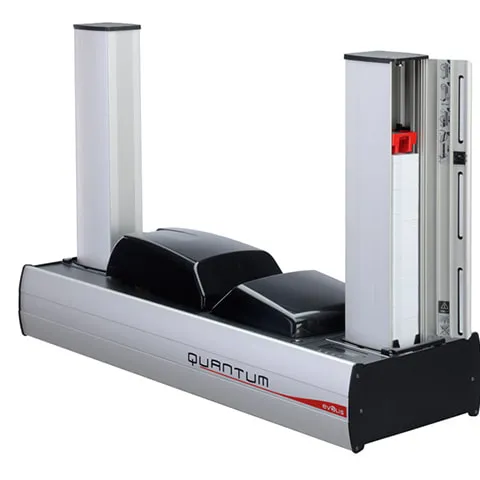

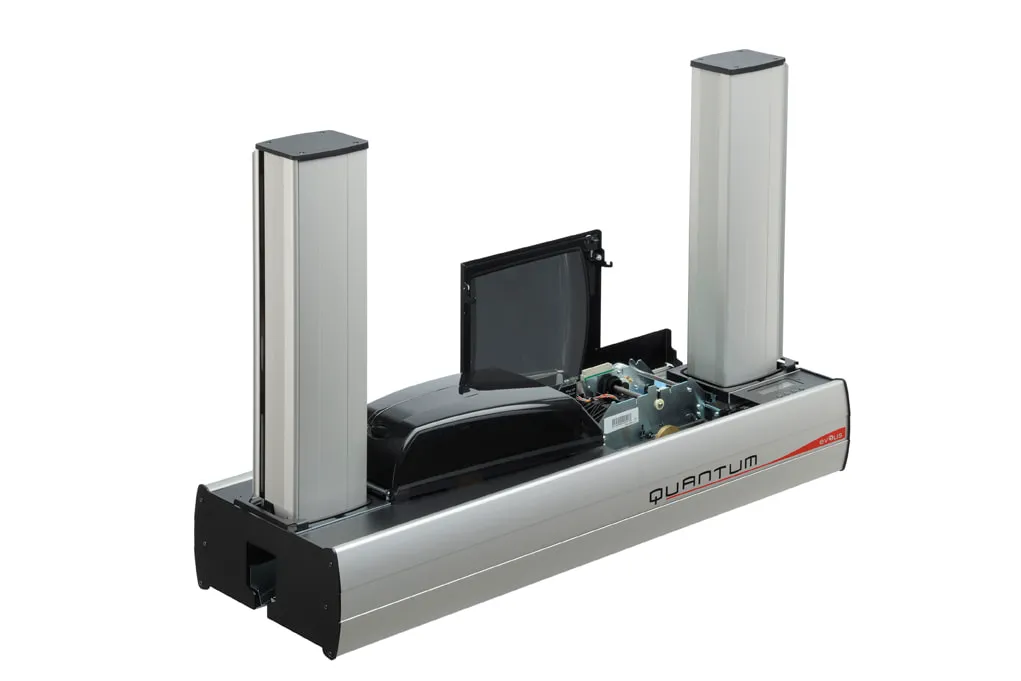

Evolis Quantum2
The Evolis Quantum2 is equipped with a modular, removable encoding unit that supports the combined personalization of magnetic stripe cards, contact smart cards, and contactless cards. This flexible system allows for on-site customization, adapting seamlessly as your card issuance requirements change.
Designed for high-volume output, the Quantum2 features both an input and output hopper with a 500-card capacity each. It can produce over 1,000 monochrome cards per hour, or more than 150 full-color cards, making it ideal for large-scale operations. Its dual-sided encoding unit operates independently from the print module, enhancing efficiency and performance.
For organizations requiring additional protection, a secure model of the Quantum2 is available. This version includes an optional central locking system that safeguards access to critical components such as the card hopper, ribbon, and encoding unit—ensuring a secure card production environment.
Card management and specifications
- Modular card input and output system featuring detachable and swappable feeders, each supporting up to 500 cards (0.76 mm / 30 mil thickness).
- Integrated reject tray designed to hold up to 20 defective cards (0.76 mm / 30 mil), ensuring uninterrupted operation.
- Card types:
- PVC cards
- Composite PVC cards
- PET cards
- ABS cards1
- Special varnished cards1
- Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)
- Thickness: 0.76mm to 1mm (30 to 40 mil)
